新聞資訊News
首頁 > 新聞資訊 > 公司新聞 > New Product | C2 Module 1200V/800A
New Product | C2 Module 1200V/800A
芯能半導體 芯能半導體 Loading... 2024-06-19

新品發布

New Product Release


Xiner Semiconductor Technology has introduced a new 1200V800A C2 module, utilizing self-developed IGBT and emitter control technology FRD based on the MPT process platform, with a package compatible with 62mm.


This product boasts ultra-low saturation voltage drop, extremely low switching loss, and an integrated full current positive temperature coefficient continuous current diode to enable multi-parallel use. It is primarily utilized in photovoltaic, energy storage, motor controller and other related fields.


芯能半導體新推出一款1200V800A C2模塊,該模塊采用自主研發的基于MPT工藝平臺的IGBT和發射極控制技術的FRD,封裝兼容62mm。


此產品具有超低的飽和壓降、超低開關損耗的特點,內置全電流正溫度系數續流二極管,利于多并聯使用,主要應用在光伏、儲能、電機控制器等領域。


Related products/相關產品:

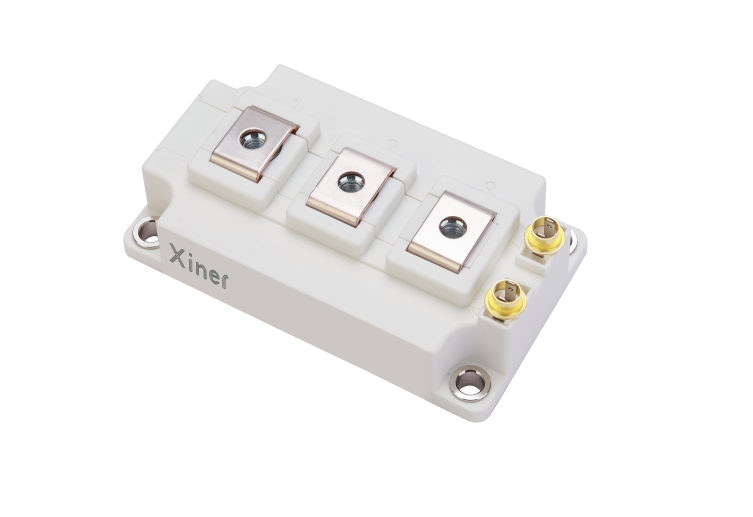

XNG800BL12C2E-J11 / XNG800BL12C2E-J11

1200V C2 Half-bridge power module /1200V C2半橋功率模塊

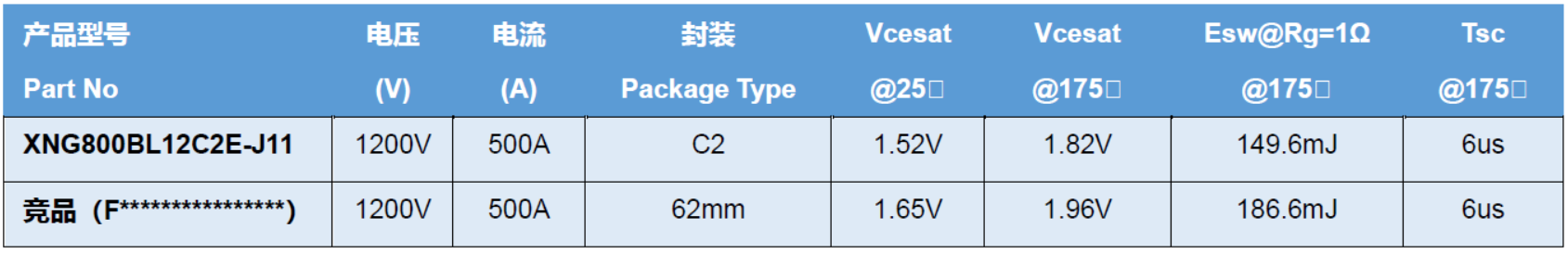

Product Characteristics/產品特性


Product Features/產品特點

1、Self-built automated production line/ 自建的自動化生產專線

2、C2 package (compatible with62mm) /C2封裝(兼容62mm)

3、1200V IGBT(MPT process platform) /1200V IGBT(MPT工藝平臺)

4、1200V positive temperature coefficient FRD, conducive to multiple parallel use / 1200V正溫度系數FRD,利于多并聯使用

5、Optimized for low inductance design / 針對低電感設計進行了優化


6、TVjop=175°C

Application Value/應用價值

1、Lower voltage overshoot/更低的電壓過沖

2、Low on-off loss/低導通損耗

3、Low switching loss/低開關損耗

4、Easy to parallel, the current can be extended/ 易于并聯,可擴展電流

5、Reduce system costs/降低系統成本

Application Area/應用領域

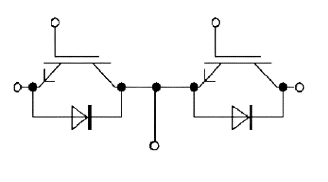

Topological Structure/拓?fù)浣Y(jié)構


Test Waveform/測試波形

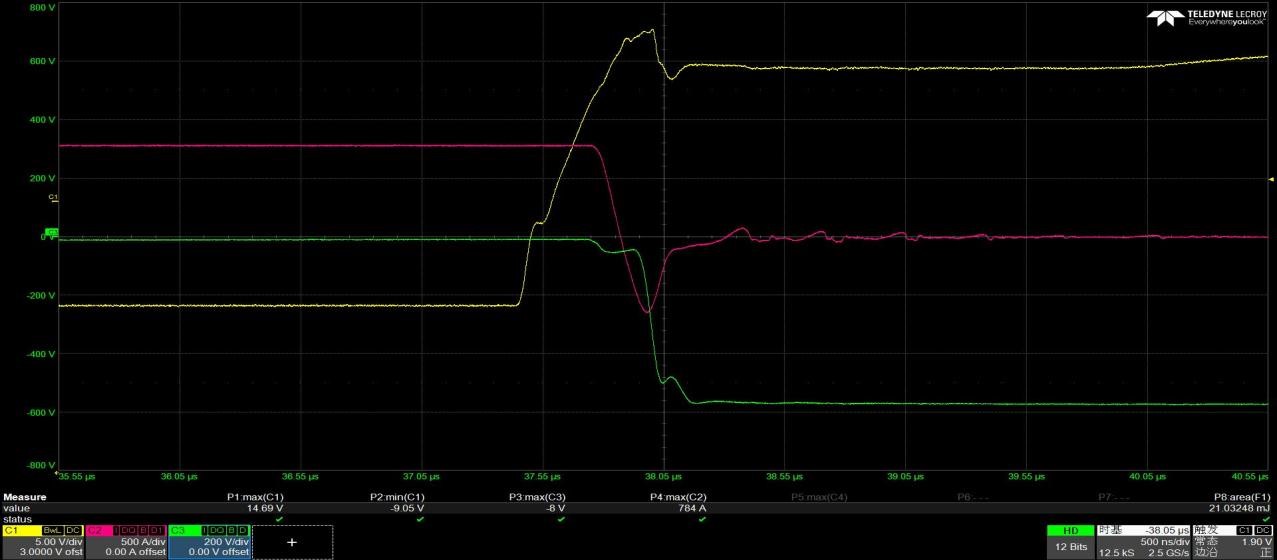

1x current switch waveform @175℃

1倍電流開關波形@175℃

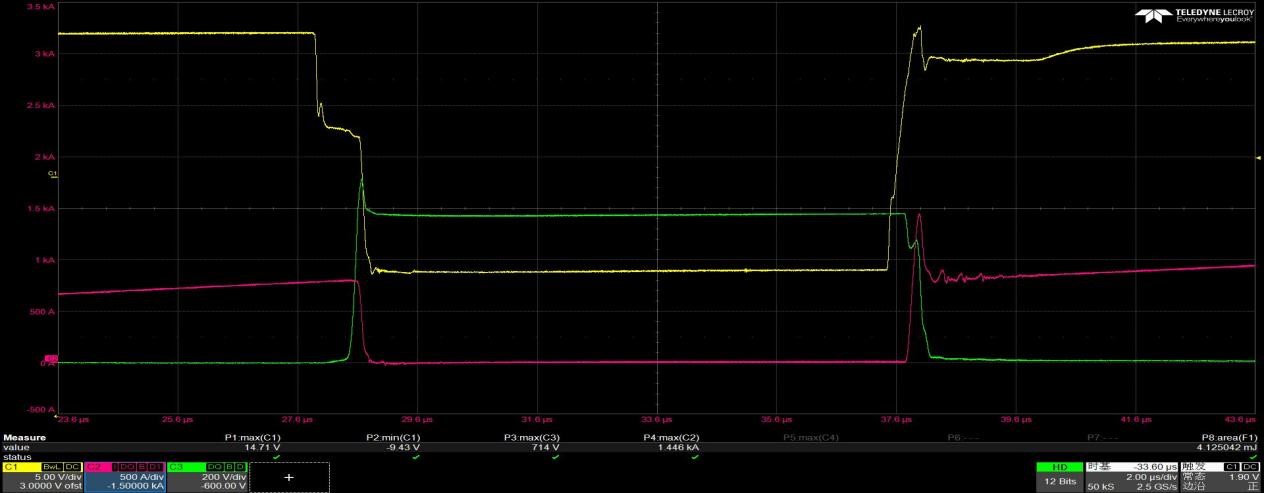

1x current reverse recovery waveform @175℃

1倍電流反向恢復波形@175℃

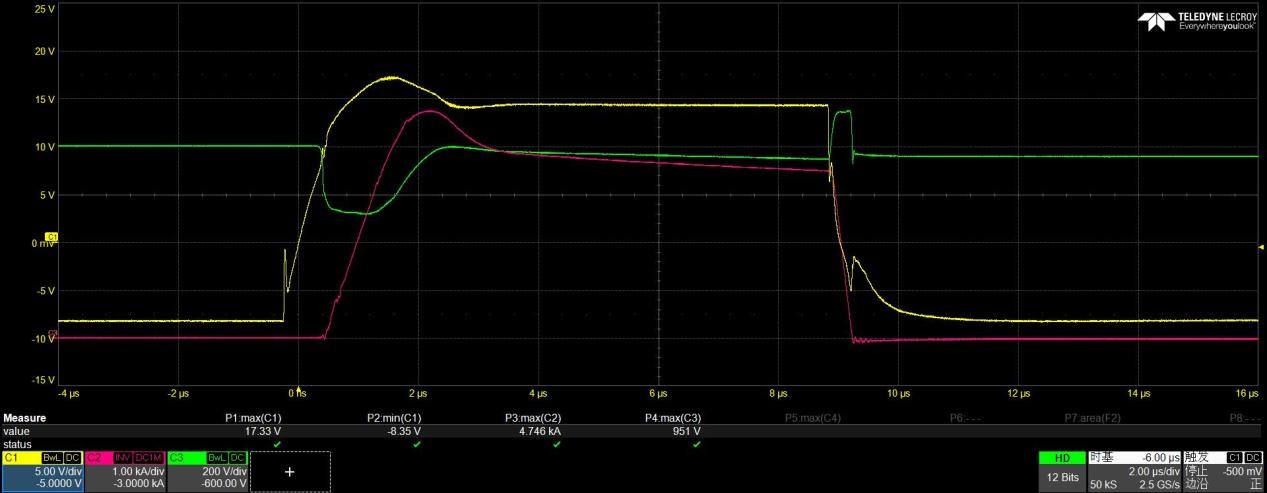

Short-circuit waveform @175℃

短路波形@175

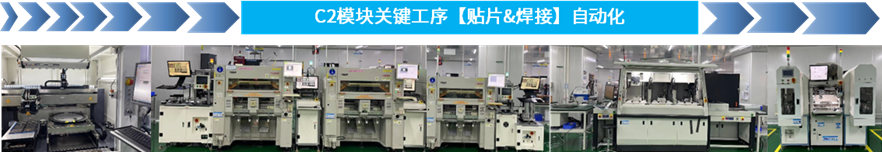

Automatic packaging/自動化封裝

Xiner Semiconductor Technology has a dedicated line for the production of C2 power modules, and the full process and full process production operations are equipped with advanced process automation loading and unloading system: to achieve efficient production and consistent product quality.


芯能半導體有一條專門生產C2的模塊的專線,全制程、全工序生產作業配備有先進的工藝自動化上下料系統:以實現高效的生產和一致的產品質量。

※ :For specific product information, please consult our sales personnel or request product specifications(service@invsemi.com).

產品具體信息可向我司銷售人員咨詢或索取產品規格(service@invsemi.com)。
